EPDM roofing, which stands for Ethylene Propylene Diene Monomer roofing, is a type of synthetic rubber roofing membrane widely used in both residential and commercial construction.
This roofing material is composed of ethylene, propylene, and a small amount of diene monomer, which are chemically polymerised to create a durable and flexible membrane.
Composition and Characteristics
EPDM roofing membranes are typically manufactured in two primary forms: black EPDM and white EPDM. Black EPDM is the most common and is composed of carbon black, which provides UV resistance and enhances durability.
White EPDM, on the other hand, incorporates titanium dioxide or other reflective pigments to increase solar reflectivity and improve energy efficiency.
EPDM roofing membranes are available in varying thicknesses, typically ranging from 0.045 inches to 0.090 inches, with thicker membranes offering greater durability and puncture resistance. These membranes are commonly sold in rolls, which are then unrolled and adhered to the roof substrate using adhesives or mechanically fastened.
Advantages Of EPDM Roofing
-
Durability
EPDM roofing is highly durable and can withstand extreme weather conditions including hail, wind, and UV radiation. Its synthetic rubber composition makes it resistant to cracking, splitting, and peeling, ensuring a longer lifespan compared to many other roofing materials.
-
Cost-Effective
One of the most significant advantages of EPDM roofing is its affordability. It is relatively inexpensive compared to traditional roofing materials such as asphalt or metal. Additionally, its low maintenance requirements contribute to long-term cost savings.
-
Ease of Installation
EPDM roofing is lightweight and flexible, making it easy to install on a variety of roof types including flat roofs. Its installation typically involves adhering the membrane to the roof substrate using adhesive or mechanical fasteners, reducing labour costs and installation time.
-
Energy Efficiency
EPDM roofing is available in white or light-coloured variants, which can reflect sunlight and reduce heat absorption, thereby lowering cooling costs during hot summer months. Some EPDM membranes are also designed with additional insulation properties, further enhancing energy efficiency.
-
Resistance to Chemicals and Ozone
EPDM roofing exhibits excellent resistance to chemicals, including acids, alkalis, and industrial pollutants, making it suitable for installations in areas with high chemical exposure such as industrial complexes or manufacturing facilities. It is also highly resistant to ozone and does not degrade over time when exposed to ozone-rich environments.
-
Flexibility and Expansion
EPDM roofing membranes are highly flexible and can accommodate building movements and thermal expansion without compromising their integrity. This flexibility helps prevent leaks and ensures long-term structural stability.
-
Environmentally Friendly
EPDM roofing is considered environmentally friendly due to its recyclable nature. At the end of its lifespan, EPDM membranes can be recycled into new roofing materials, reducing the environmental impact associated with disposal.

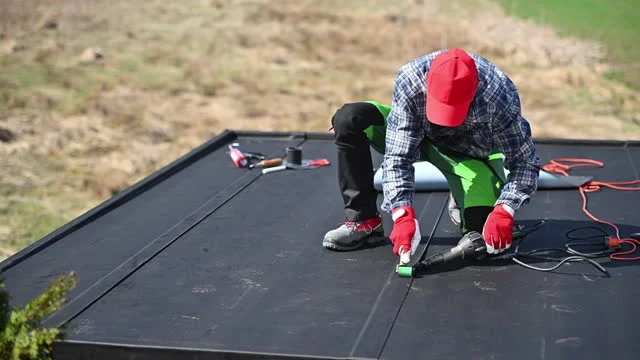

Disadvantages Of EPDM Roofing
-
Limited Aesthetic Options
Unlike some other roofing materials such as asphalt shingles or metal roofing, EPDM roofing does not offer a wide range of aesthetic options. It typically comes in black or white colour, which may not appeal to homeowners seeking more visually appealing roofing solutions.
-
Limited UV Resistance
While EPDM roofing is generally UV-resistant, prolonged exposure to intense sunlight for many years can cause some degradation over time, leading to surface cracking or brittleness. UV-resistant coatings or protective layers can help mitigate this issue.
-
Seam Vulnerability
EPDM roofing installations often require seams to be sealed using adhesive or tape. These seams can be vulnerable to water infiltration over time, especially if not installed or maintained correctly. However, advancements in installation techniques and seam tapes have significantly reduced this risk.
-
Potential for Shrinkage
EPDM roofing membranes may experience some degree of shrinkage over time, particularly in extreme temperature fluctuations. While proper installation techniques can minimise this risk, it is still a factor to consider, especially in regions with fluctuating climate conditions.
How long does an EPDM roof last?
In the UK, EPDM roofing typically lasts between 40 to 50 years or even longer with proper maintenance. The durability of EPDM roofs in the UK is influenced by the specific weather conditions experienced in the region, including rain, wind, and occasional temperature fluctuations.
Despite these weather challenges, EPDM roofing remains resilient and can effectively withstand the elements, contributing to its longevity in the UK climate.
how to install EPDM rubber roofing?
Step 1: Preparation
-
- Clean the roof surface thoroughly, removing any debris, dirt, or old roofing material.
- Repair any damaged or deteriorated areas of the roof deck.
- Ensure the roof is dry and free from moisture.
Step 2: Measurement and Cutting
-
- Measure the dimensions of the roof accurately using a tape measure.
- Cut the EPDM rubber membrane to size using a sharp utility knife or scissors. Make sure to leave some extra material for overhang.
Step 3: Application of Adhesive
-
- Apply EPDM adhesive to the roof deck using a roller or spray gun, following the manufacturer’s instructions.
- Ensure the adhesive is spread evenly across the entire surface.
- Allow the adhesive to set according to the manufacturer’s recommended time frame, usually until it becomes tacky to the touch.
Step 4: Positioning the EPDM Membrane
-
- Carefully position the EPDM membrane onto the adhesive-covered roof deck, starting from one edge and working towards the other.
- Avoid stretching the membrane excessively to prevent future shrinkage.
- Smooth out the membrane using a broom or roller to eliminate any wrinkles or air bubbles.
Step 5: Seaming
-
- If multiple EPDM sheets are required, overlap the edges by at least 75mm (3 inches) for a secure seal.
- Apply EPDM seam tape or adhesive along the overlap, ensuring full coverage.
- Use a seam roller to firmly press down on the seam and ensure proper adhesion.
Step 6: Detailing and Edge Trimming
-
- Install EPDM flashing and edge trims around roof penetrations, edges, and corners using appropriate adhesives and fasteners.
- Trim excess EPDM membrane using a sharp knife, maintaining a uniform overhang of about 50mm (2 inches) around the perimeter.
Step 7: Final Inspection
-
- Inspect the entire roof surface for any wrinkles, bubbles, or imperfections.
- Check all seams, edges, and penetrations to ensure they are properly sealed and secured.
- Make any necessary adjustments or repairs as needed before proceeding.
Step 8: Cleanup and Maintenance
-
- Remove any adhesive residue or debris from the roof surface.
- Provide the client with maintenance instructions, including regular inspections and cleaning procedures, to ensure the longevity of the EPDM roof.
Installing EPDM rubber roofing is a complex process that requires professional expertise. It’s crucial to hire trained and experienced professionals for the installation to ensure proper sealing and longevity of the roof.
